Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: DYE
  • Model Number: 75gallon
  • size: 75gallon/300L
  • column: copper and glass
  • Packing: crate Packing
  • Certificate: ISO9001,CE,PED,TUV
  • Origin: China
  • Technology: Germany
  • spirit to make: whiskey,rum,vodka,gin,brandy

Packaging & Delivery

Packaging Details Wooden case or by your needs ( Distillation Equipments )
Delivery Time Shipped in 60 days after payment
Product Description

  Home grain alcohol destilador with botanical basket for making vodka

                           welcome to Daeyoo Tech. Co., Ltd. Wenzhou

What is vodka?

Vodka is a neutral spirit that is without distinctive character, aroma, taste, or color.[1] These properties are developed during the distillation process or by treating crudely distilled spirits with activated carbon or other materials. Finely distilled vodka may also be further purified and refined by treatment with activated carbon and other materials. Vodka is usually not aged and can be made from grains, potatoes, sugars, fruits, and just about anything else that can be fermented to produce alcohol. This makes vodka an economical spirit that can be made easily in a short amount of time from readily available materials.

How is it made?
Choosing ingredients-Making Masg-Fermentation-distillation-carbon filtering if needed-Dilute the vodka to the desired strength-Bottle the vodka

Contact me for detailed process file by PDF.

Which is better and more productive – a Reflux Still or a Pot Still?
Both types of Still will remove the alcohol from a wash or mash, therefore the productivity is basically the same.
A Reflux Still refines the distillate to a high degree, producing a distillate of very high alcohol content with very little of the ‘character’ of the wash or mash coming through. A Reflux Still is a must for producing neutral spirit or Vodka.
A Pot Still produces a distillate with much lower alcohol content but with a correspondingly increased level of the ‘character’ coming through. This is important for distilleries producing Spirits such as Whisky, Tequila and Rum etc. where the character of the base ingredients is required in the final product.

How difficult is it to make spirits at home?

It is really simple to make spirits you will love to drink. It is an easy 4 step process.
Firstly the sugar and water is turned into alcohol by fermenting with yeast. Secondly, you separate the purified alcohol from the water in the wash by distilling. Distillation is done by heating the wash in a still, boiling off the alcohol and condensing the vapour back into a liquid. Thirdly, use a carbon filter to filter out most of the remaining trace impurities. You will now have a clean spirit at 40% with no flavours or tastes.Finally, simply add your favourite spirit or liqueur essence to make your favorite, scotch bourbon rum or liqueur. There are hundreds to choose from

How long does it take to make each batch of spirits?

Depending on the type of yeast and nutrients and the process you follow, you can be drinking your own home made spirits within 7 days.

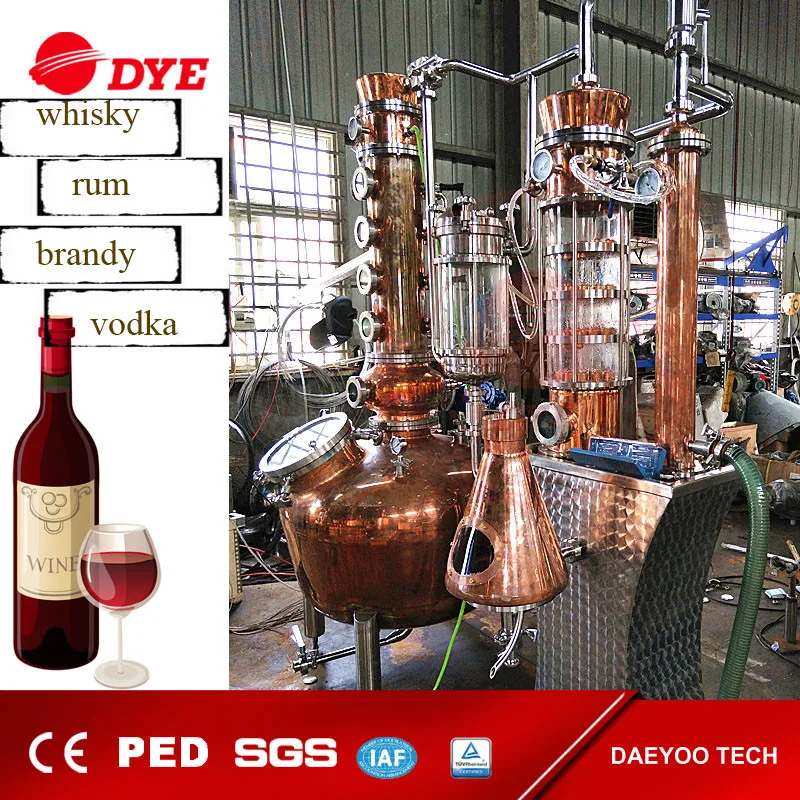

 What's the pictured still consists of?

 This setup is 75gallon/300L distiller. It consists of 300L bain marie  heated copper  kettle,4 plates copper reflux column,4plates glass  rectifying column,glass and copper botanical basket,copper condenser column. It can make sure you get 95% content ABV after distilling run.


Our advantage

DYE company,one of white hair for Brewing and distilling equipment business in China since 1986,wish you good luck and hope you can find suitable product here.

Quality
Quality is the soil of an enterprise. We can offer you competitive advantage products.With us,your money in safe and your business in safe.

Delivery
Time is gold for you and for us,so we have professional team work and production line and can make nice quality in short time.

Certificate
Our equipment is coming with certifications of PED and our company is TUV approved.We use CE approved components for Europe customers,and CSA or UL approved motor for North American customers.

We are ready to sign a contract with you in case you need to ensure our quality.
Certifications
Detailed Images

Machine Parts

Name: Support

Brand:DYE

Original:China

All support are made of stainless steel 304 or red copper,we can also do the shape according to your requirement

Main Features

Name: Bubble caps and trays
Brand: DYE
Original: China
The trays of distillation column we have improve it like photo,if the trays be full welded on column,there will have welding scar around of column,it`s not good looking.All bubble caps and screw are made of T2 grade red copper,the screw design is by our company,no dead corner,it can 100% meet sanitary stand.

Machine Parts

Name: Distillation column
Brand: DYE
Original: China
5 & 8-4 plant/16 plate Distillation column
It consist of red copper column,bubble cap,down comers,bubble plate,red copper screw.We can tailor the height and plate number for your specific application.the max.height of column can reach 2000 mm;up to 10 plates with a pair of flange;all bubble plates integrated within a tightly embedded inner shell;all features so the surface appearance looks smooth and attractive,yet simple and generous.

FEATURES:For low wine:4-6 plates;For High wine:6-20 plates

Main Features

Name: Agitator
Brand: Siemens,ABB,Nanyang or other
Original: Germany ,Japan,China
On top of still pot,with agitator.
Material:stainless steel 304,union connection,it`s easy to installtion.

Voltage:280V/220V/240V/380V/415V/460V/etc,we can supply voltage according to customer request,Ex-proof motor with CE/UL/CSA certificate

Our Service

Pre-Sales Service

1. Free of making offers, craft and technical guidance.
2. We can provide company's qualification certification and the drawings.
3. We can also make customized products according to customer's needs.

After-Sales Service

1. We provide long-term after-sale service.
2. Owing to the quotation of our equipment is FOB price which excluded charges of door-to-door service. Thus, if necessary, we can appoint our technician to debug the machine with air ticket, visa, accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.
3. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
Packing & Delivery
Packaging
Size
Customization
Weight
Customization



Packaging Details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
Customization
Weight
Customization



Packaging Details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.


Quality control:

Spectrometer

We have the Spectrometer(from Germany.) and CMM, which ensures the raw and furnace material elements testing, and the precision of machining products. The company has passed the ISO9001.

surface roughometer

Strictly manufacture in accordance with standards Roughness is less than 0.22 μm
Adopt international standards of high quality stainless steel tanks tank 304 stainless steel material, high pressure polyurethane foam insulation, sheath according to customer requirements, can adopt stainless steel polishing, inferior smooth, carbon steel, such as spray form.

thickness measuring meter

thickness of steel plates
super quality with competitive price, adopt the SUS304 as material, CE certificate and ISO certificate.equipment 3 year's warranty, all life service.

Our company's customer segmentation:

    Our customer segmentation is mainly focused on the Euramerican developed countries such as the USA, Canada, the United Kingdom, Australia and Russia, etc. At present, we have no formal foreign agents but we are looking for superior agents to create a brilliant future.


If you want to know more detailed price and drawings,pls feel free to contact me.
